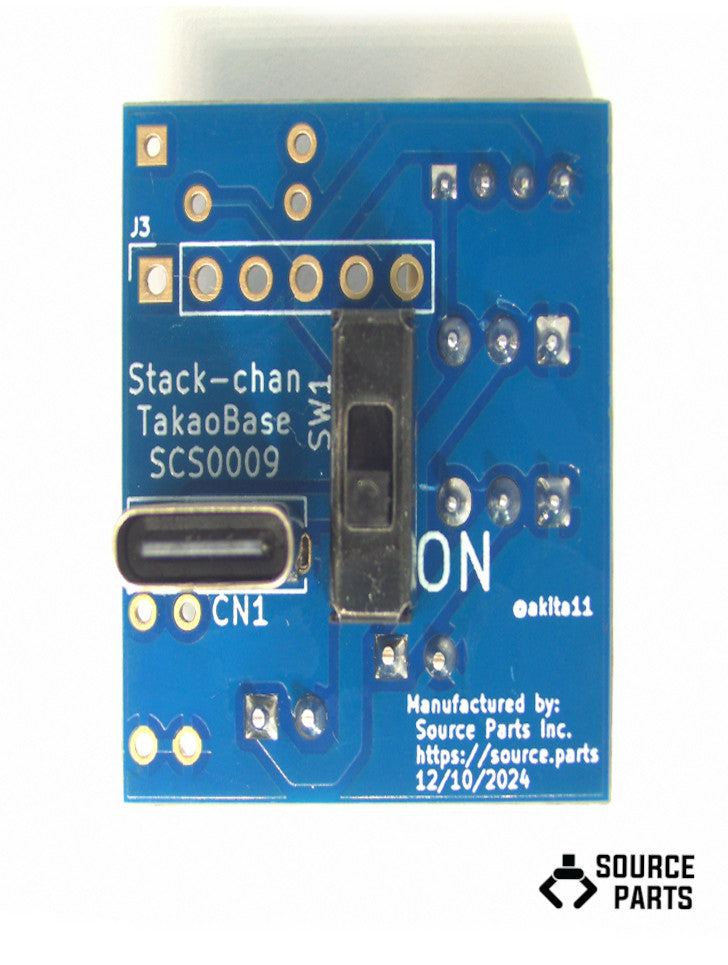

Stack-chan SCS0009 Base Board by Takao

The Ultimate Building Block for Your Robot Companion

Bring your Stack-chan to life with this elegantly designed base board - the simplest way to assemble your own adorable robot companion. Created by the ingenious Takao-san, this specialized board is your gateway to building a personality-filled desktop friend that moves with surprising grace and precision.

What Makes This Special?

This board is specifically engineered to work with Feetech's SCS0009 serial servo motors, allowing for fluid, natural movements that give Stack-chan its charming personality. The complete package includes:

• M5Stack main body connection port
• Dual connectors for SCS0009 serial servo motors
• USB Type-C power input with integrated power switch
• Compact design that fits perfectly within Takao's servo bracket housing

Power your creation with any standard USB Type-C adapter and watch as Stack-chan springs to life, turning heads and bringing smiles wherever it goes.

What You'll Need:

• M5Stack Core (Basic or Core2 recommended)
• Two Feetech SCS0009 serial servo motors
• Grove cable (5cm for M5Stack ideal)
• Takao version housing for SCS0009 (3D printed)
• Required screws and assembly components

Easy Assembly:

The board's thoughtful design allows for intuitive connection:

• Connect the horizontal servo (foot side) to the "H1" port
• Connect the vertical servo (body side) to the "V2" port
• Servo cables connect with the GND side (brown/black wire) toward the edge with the white marking
• The board nestles perfectly into the servo bracket

Servo Configuration Made Simple:

Each SCS0009 servo requires a unique ID for proper function. Our board includes integrated configuration circuitry that makes this process straightforward without requiring additional equipment. The included setup guide walks you through the simple process of assigning proper IDs to ensure smooth operation.

Creator Support:

With permission from the original creator, Junichi Akita (@akita11), we're proud to offer these units with a portion of each sale being returned to support continued innovation. Your purchase directly supports the brilliant minds behind Stack-chan's development.
